Multiple Choice
Identify the
choice that best completes the statement or answers the question.
|
|
|

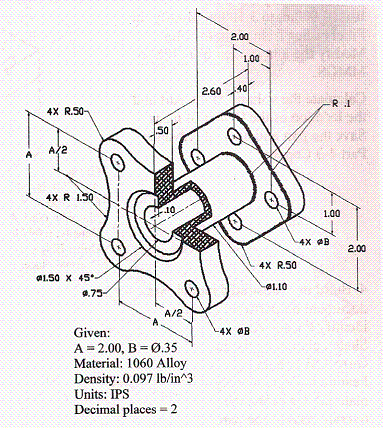

1.
|
In
Tutorial: Advanced Part 4-1 you created the illustrated part. Modify the Base flange thickness
from.40in to .50in Modify the Chamfer feature angle from 45deg to 33deg. Modify the Fillet feature
redius from .10 in to .125in. Modify the material from 1060 Alloy to Nickel.
Calculate the overall mass of the part, volume,
and locate the Center of mass with the provided information. |  | | |
a. | Overall mass of the part= 1.99
pounds
Volume of the part= 6.47 cubic inches
Center of Mass Location: X= 0.00 inches, Y= 0.00 inches, Z=
1.49 inches | c. | Overall mass of the part= 1.99
pounds
Volume of the part= 4.67 cubic inches
Center of Mass Location: X= 0.20 inches, Y= 0.20 inches, Z=
1.49 inches | b. | Overall mass of
the part= 3.99 pounds
Volume of the part= 4.67 cubic inches
Center of Mass Location: X= 0.20 inches, Y= 0.20 inches, Z=
1.49 inches | d. | Overall mass of the part= 3.99 pounds
Volume of the
part= 6.47 cubic inches
Center of Mass
Location: X= 0.00 inches, Y= 0.00 inches, Z= 1.49 inches |
|
|
|

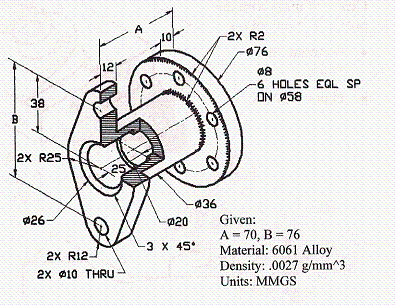

2.
|
In
Tutorial: Advanced Part 4-2 you created the illustrated part. Modify the CirPattern1 feature. Modify
the number of instances from 6 to 8. Modify the seed feature from an 8mm diameter to a 6mm
diameter.
Calculate the
overall mass, volume, and the location of the Center of mass relative to the part
Origin. |  | | |
a. | Overall mass of the part= 310.00
grams
Volume of the part = 103333.73 cubic millimeters
Center of Mass Location: X= 21.75 millimeters, Y= 0.00
millimeters, Z= 0.00 | c. | Overall mass of the part= 279.00
grams
Volume of the part = 103333.73 cubic millimeters
Center of Mass Location: X= 0.00 millimeters, Y= 0.00
millimeters, Z= 21.75 | b. | Overall mass of
the part= 310.00 grams
Volume of the part = 103769.73 cubic
millimeters
Center of Mass Location: X=
0.00 millimeters, Y= 0.00 millimeters, Z= 21.75 | d. | Overall mass of
the part= 279.00 grams
Volume of the part = 103769.73 cubic
millimeters
Center of Mass Location: X=
1.20 millimeters, Y= 1.20 millimeters, Z= 20.75 |
|
|
|

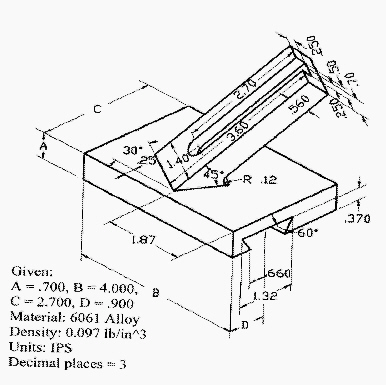

3.
|
In
Tutorial: Advanced Part 4-3 you created the illustrated part. Modify the material from 6061 Alloy to
Copper. Modify the B dimension from 4.000in. to 3.500in. Modify the Fillet radius from .12in to .14in
Modify the unit system from IPS to MMGS.
Calculate the volume of the part and the location of the Center of mass. Save
the part and name it Advance Part 4-3 Copper. |  | | |
a. | Overall mass of the part = 1284.78
grams
Volume of the part = 122198.22 cubic millimeters
Center of Mass Location: X= 44.81 millimeters, Y= 21.02
millimeters, Z= -41.04 millimeters | c. | Overall mass of the part = 1284.78
grams
Volume of the part = 133467.33 cubic millimeters
Center of Mass Location: X= 44.81 millimeters, Y= 21.02
millimeters, Z= -41.04 millimeters | b. |
Overall mass of the part = 1087.56 grams
Volume of the part = 122198.22 cubic
millimeters
Center of Mass Location: X=
44.81 millimeters, Y= 21.02 millimeters, Z= -41.04 millimeters | d. |
Overall mass of the part = 1087.56 grams
Volume of the part = 133467.33 cubic
millimeters
Center of Mass Location: X=
44.81 millimeters, Y= 21.02 millimeters, Z= -41.04 millimeters |
|
|
|

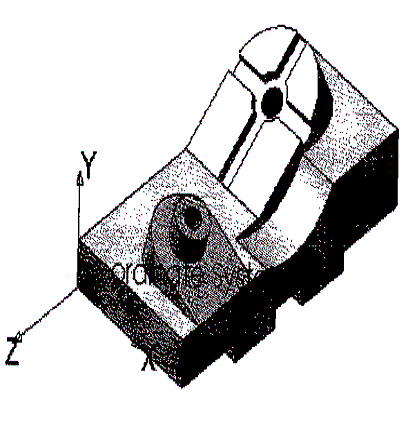

4.
|
Build
this illustrated model. Set document properties, identify the correct Sketch planes, apply the
correct Sketch and Feature tools, and apply material. Calculate the overall mass of the part, volume
and locate the Center of mass with the provided information
Material: 6061
Alloy
Units: MMGS |  | | |
a. | Overall mass of the part = 2040.57
grams
Volume of the part = 855765.92 cubic millimeters
Center of Mass Location: X= -0.71, Y= 16.66 millimeters, Z=
-9.31 millimeters | c. | Overall mass of the part = 3021.64
grams
Volume of the part = 755765.04 cubic millimeters
Center of Mass Location: X= -0.71, Y= 16.66 millimeters, Z=
-9.31 millimeters | b. | Overall mass of
the part = 2040.57 grams
Volume of the part = 755765.04 cubic
millimeters
Center of Mass Location: X=
-0.71, Y= 16.66 millimeters, Z= -9.31 millimeters | d. | Overall mass of
the part = 3021.64 grams
Volume of the part = 855765.92 cubic
millimeters
Center of Mass Location: X=
-0.71, Y= 16.66 millimeters, Z= -9.31 millimeters |
|
|
|

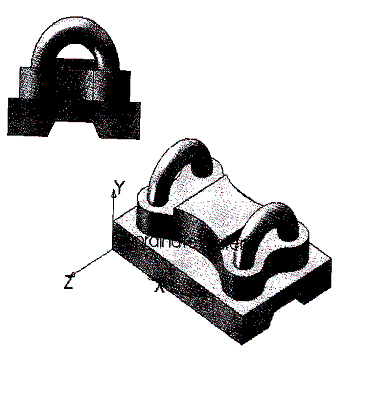

5.
|
Build
this illustrated model. Calculate the overall mass of the part, volume and locate the Center of mass
with the provided information. Where do you start? Build the model, as you did in the above exercise.
Create Coordinate System1 to locate the Center of mass for the model.
Material: 6061
Alloy
Units: MMGS |  | | |
a. | Overall mass of the part = 3297.98
grams
Volume of the part = 755765.04 cubic millimeters
Center of Mass Location: X= 49.29 millimeters, Y= 16.66
millimeters, Z= -109.31 millimeters | c. | Overall mass of the part = 2040.57 grams
Volume of the
part = 684923.54 cubic millimeters
Center
of Mass Location: X= 49.29 millimeters, Y= 16.66 millimeters, Z= -109.31
millimeters | b. | Overall mass of
the part = 3297.98 grams
Volume of the part = 684923.54 cubic
millimeters
Center of Mass Location: X=
49.29 millimeters, Y= 16.66 millimeters, Z= -109.31 millimeters | d. | Overall mass of
the part = 2040.57 grams
Volume of the part = 755765.04 cubic
millimeters
Center of Mass Location: X=
49.29 millimeters, Y= 16.66 millimeters, Z= -109.31
millimeters |
|
|
|

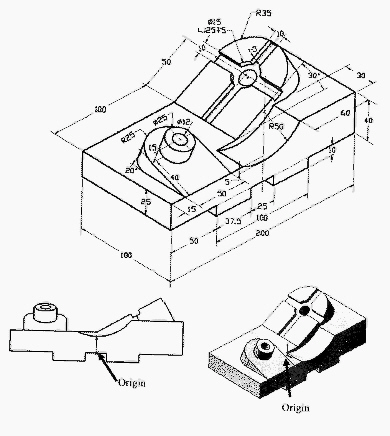

6.
|
Build
this illustrated model. Calculate the overall
mass of the part, volume, and locate the Center of mass with the provided
information.
Material: 6061 Alloy
Units:
MMGS
|  | | |
a. | Overall mass of the part= 37021.48
grams
Volume of the part= 13711657.53 cubic millimeters
Center of Mass Location: X= 0.00 millimeters, Y= 0.11
millimeters, Z= 0.00 millimeters | c. | Overall mass of the part= 42921.78 grams
Volume of the
part= 13711657.53 cubic millimeters
Center
of Mass Location: X= 0.00 millimeters, Y= 0.11 millimeters, Z= 0.00 millimeters
| b. | Overall mass of the part= 37021.48
grams
Volume of the part= 12857583.76 cubic millimeters
Center of Mass Location: X= 0.00 millimeters, Y= 0.11
millimeters, Z= 0.00 millimeters | d. | Overall mass of the part= 42921.78
grams
Volume of the part= 12857583.76 cubic millimeters
Center of Mass Location: X= 0.00 millimeters, Y= 0.11
millimeters, Z= 0.00 millimeters |
|
|
|

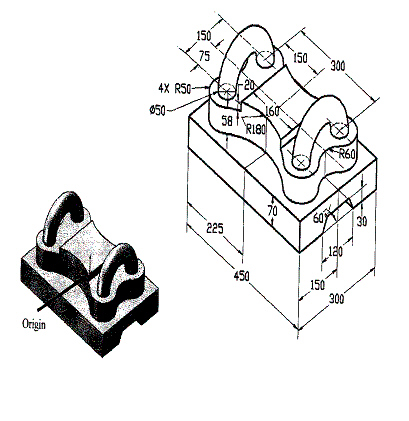

7.
|
Build
this model. Calculate the overall mass of the part, volume and locate the Center of mass with the
provided information. Where do you start? Build the illustrated model, as you did in the above
exercise. Create Coordinate System1 to locate the Center of mass for the model.
Material: 6061
Alloy
Units: MMGS |  | | |
a. | Overall mass of the part= 48034.64
grams
Volume of the part= 14766839.77 cubic millimeters
Center of Mass Location: X=225.0 millimeters, Y=70.11
millimeters, Z=-150.0 millimeters. | c. | Overall mass of the part= 37021.48 grams
Volume of the
part= 13711657.53 cubic millimeters
Center
of Mass Location: X=225.0 millimeters, Y=70.11 millimeters, Z=-150.0
millimeters. | b. | Overall mass of
the part= 37021.48 grams
Volume of the part= 14766839.77 cubic
millimeters
Center of Mass Location:
X=225.0 millimeters, Y=70.11 millimeters, Z=-150.0
millimeters. | d. | Overall mass of the part= 48034.64 grams
Volume of the
part= 13711657.53 cubic millimeters
Center
of Mass Location: X=225.0 millimeters, Y=70.11 millimeters, Z=-150.0
millimeters. |
|
