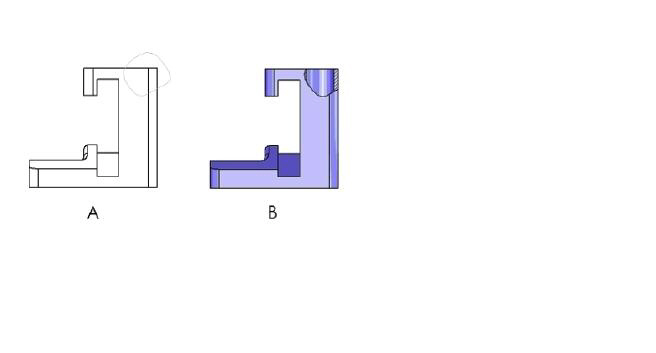

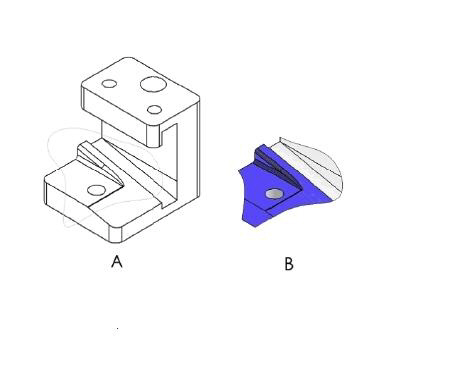

To create drawing view ‘B’ it is necessary to sketch a spline (as shown) on drawing view ‘A’ and insert which SolidWorks view type?

To create drawing view ‘B’ it is necessary to sketch a spline (as shown) on drawing view ‘A’ and insert which SolidWorks view type?

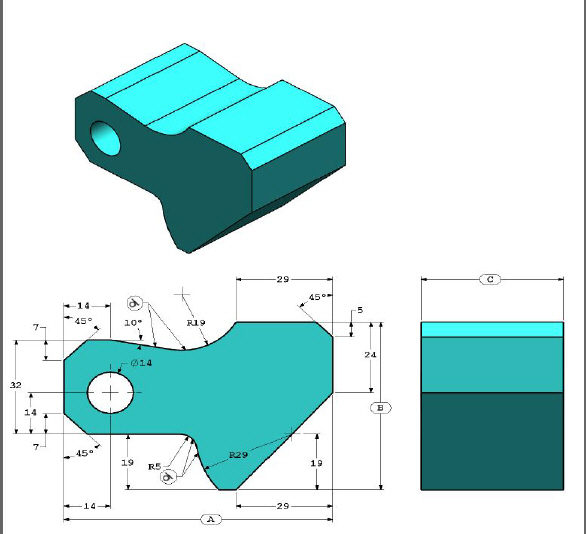

Unit system: MMGS (millimeter, gram, second)
Decimal places: 2
Part origin: Arbitrary
All holes through all unless shown otherwise.
Material: AISI 1020 Steel
Density = 0.0079 g/mm^3
A = 81.00
B = 57.00
C = 43.00
What is the overall mass of the part (grams)?
Hint: If you don't find an option within 1% of your answer please re-check your solid model.

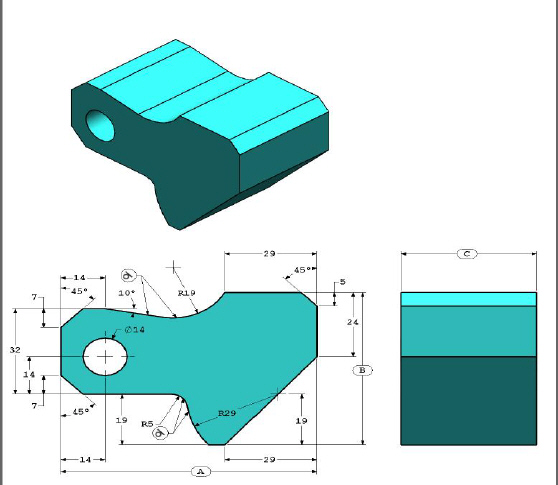

Unit system: MMGS (millimeter, gram, second)
Decimal places: 2
Part origin: Arbitrary
All holes through all unless shown otherwise.
Material: AISI 1020 Steel
Density = 0.0079 g/mm^3
Use the part created in the previous question and modify it by changing the following parameters:
A = 84.00
B = 59.00
C = 45.00
Note: Assume all other dimensions are the same as in the previous question.
What is the overall mass of the part (grams)?

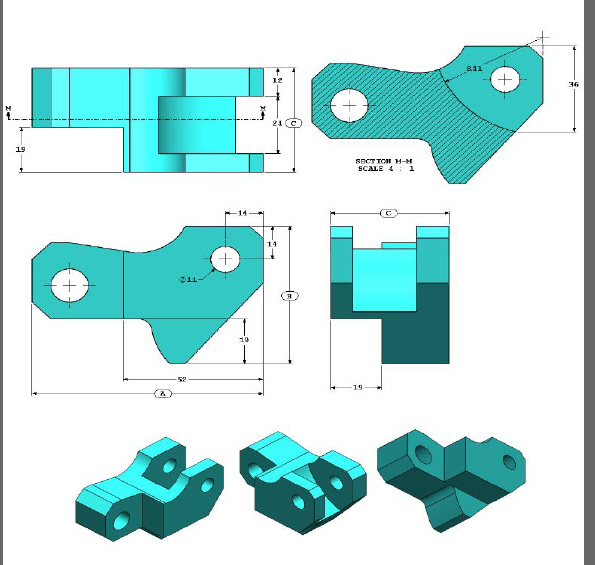

Unit system: MMGS (millimeter, gram, second)
Decimal places: 2
Part origin: Arbitrary
All holes through all unless shown otherwise.
Material: AISI 1020 Steel
Density = 0.0079 g/mm^3
Use the part created in the previous question and modify it by removing material and also by changing the following parameters:
A = 86.00
B = 58.00
C = 44.00
What is the overall mass of the part (grams)?

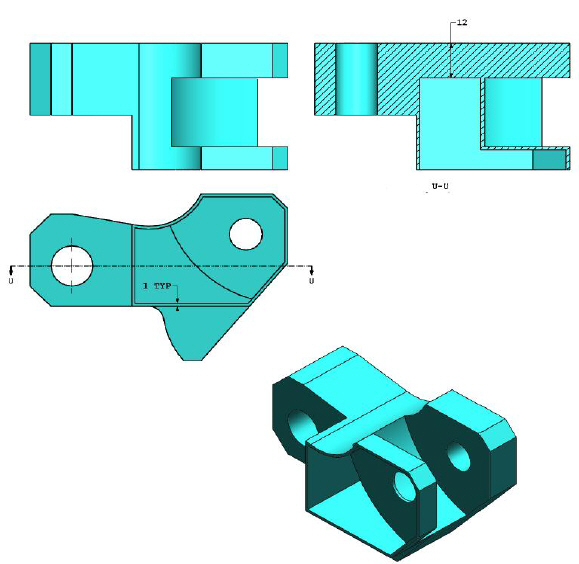

Unit system: MMGS (millimeter, gram, second)
Decimal places: 2
Part origin: Arbitrary
All holes through all unless shown otherwise.
Material: AISI 1020 Steel
Density = 0.0079 g/mm^3
Use the part created in the previous question and modify it by adding a pocket.
Note 1: Only one pocket on one side is to be added. This modified part is not symmetrical.
Note 2: Assume all unshown dimensions are the same as in the previous question #5.
What is the overall mass of the part (grams)?

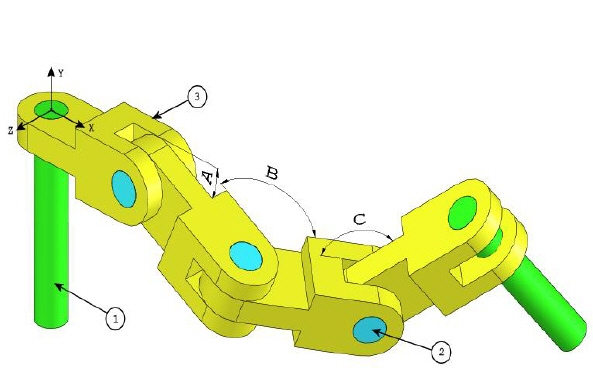

Unit system: MMGS (millimeter, gram, second)
Decimal places: 2
Assembly origin: Arbitrary
-Download the attached zip file and open it.
-Save the contained parts and open those parts in SolidWorks. (Note: If SolidWorks prompts "Do you want to proceed with feature recognition?" please click "No".)
-IMPORTANT: Create the Assembly with respect to the Origin as shown in isometric view. (This is important for calculating the proper Center of Mass)
-Create the assembly using the following conditions:
1. Pins are mated concentric to chain link holes (no clearance).
2. Pin end faces are coincident to chain link side faces.
A = 25 degrees
B = 125 degrees
C = 130 degrees
What is the center of mass of the assembly (millimeters)?
Hint: If you don't find an option within 1% of your answer please re-check your assembly.

Unit system: MMGS (millimeter, gram, second)
Decimal places: 2
Assembly origin: Arbitrary
-Using the same assembly created in the previous question modify the following parameters:
A = 30 degrees
B = 115 degrees
C = 135 degrees
What is the center of mass of the assembly (millimeters)?
